Securing Nginx

Sep 06, 2020 • 3 min read
Recommended • Security

Starting Line

A few weeks ago, I was reading an article on Scott Helme's blog about caching Ghost with Nginx. In doing this, I made this blog and a number of other services that I use kick into overdrive, but that whole endeavor is best left for its own article.

While reading that article, I noticed in the sidebar a service that he operates called Security Headers. Essentially, this measures measure how secure the headers of a web server are for a particular website. For kicks, I tried this site and my knowledge base; was I ever surprised by what I found.

Both sites came back with a sobering 'D' rating out of 'A' through 'F'. I wish I had taken a screenshot of this at the time to illustrate what I'm referring to, but unfortunately, I didn't.

These results were particularly concerning because I was under the assumption that I had secured not only the services pretty well, but also Nginx and Cloudflare. I realized quickly that I had a lot to learn.

Re-evaluation

There were a number of resources I found about securing Nginx, but the problem was making it work for my environment. This was actually a lot harder than it may sound because I had to factor services like Cloudflare into the mix.

For example, I tried the following header that kept cropping up in my research, only to find out that it completely bypassed multi-factor auth:

proxy_hide_header Set-Cookie;

The breakdown of the proxy_hide_header is as follows:

By default, nginx does not pass the header fields “Date”, “Server”, “X-Pad”, and “X-Accel-...” from the response of a proxied server to a client. The proxy_hide_header directive sets additional fields that will not be passed. If, on the contrary, the passing of fields needs to be permitted, the proxy_pass_header directive can be used.

Because the header was effectively being bypassed, it was breaking multi-factor auth. To be clear, I have multi-factor auth enabled through Cloudflare Access using Okta as the IdP.

Trial and Error

The amount of trial and error that took place in all this was staggering, but I was finally able to narrow the new headers down to the following list:

add_header X-Frame-Options SAMEORIGIN;
add_header X-XSS-Protection “1; mode=block”;
add_header X-Content-Type-Options nosniff;
add_header Referrer-Policy “no-referrer”;
add_header Feature-Policy strict-origin-when-cross-origin;
add_header hide_server_tokens on;
add_header Content-Security-Policy “default-src * data: 'unsafe-eval' 'unsafe-inline'” always;

This gave me a nice balance between adding the additional security, while still retaining the performance benefits from the caching directives already put in place.

Resources

For reference, the resources I used in order to make things work the way I wanted them to are as follows:

Finish Line

The problem with having this site password protected is that I can't get an accurate read on the headers; only an approximation. This is done by using my knowledge base as a comparison since the same headers and caching are used throughout the Nginx config file.

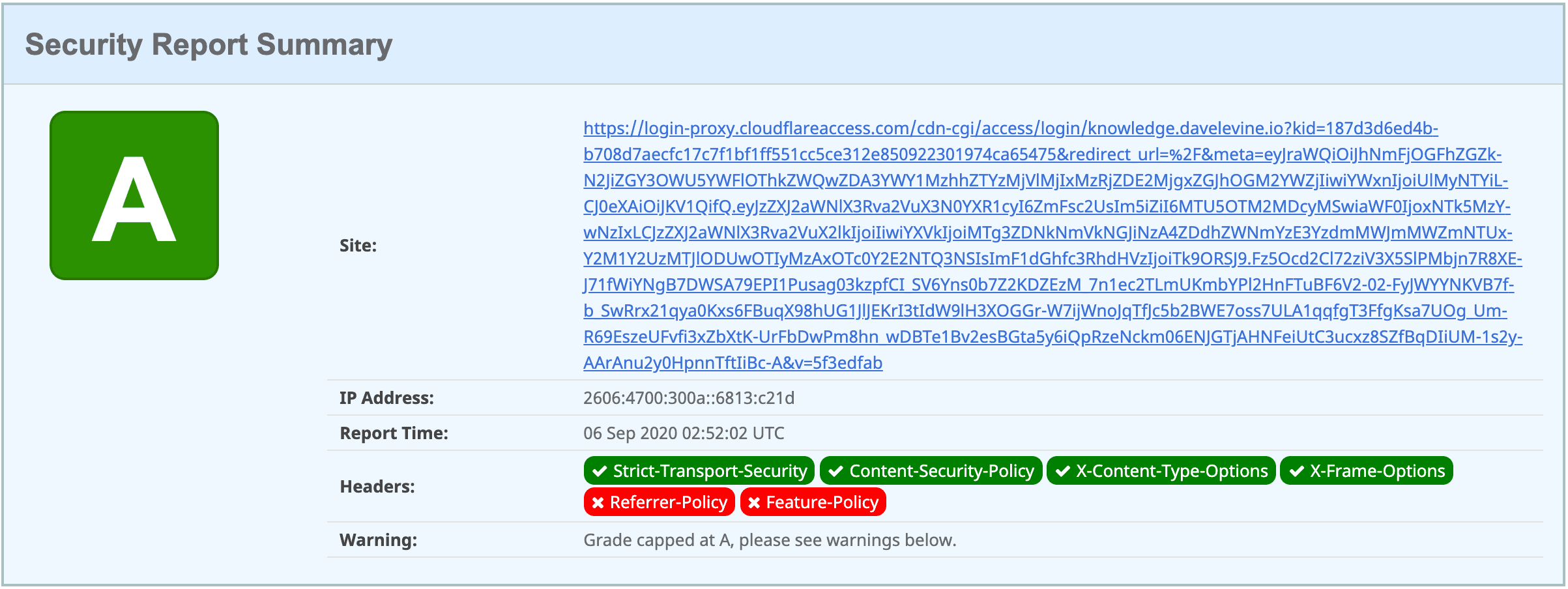

Screen Shot 2020-09-05 at 10.52.32 PM

As you can see, my knowledge base headers are in great shape, which effectively means the headers for this blog are in great shape.

This was a good exercise to go through, even though I'm effectively the only traffic going to any of these sites. It's a good reminder that even if you think you've done enough to secure your services, there's always additional work to be done.
